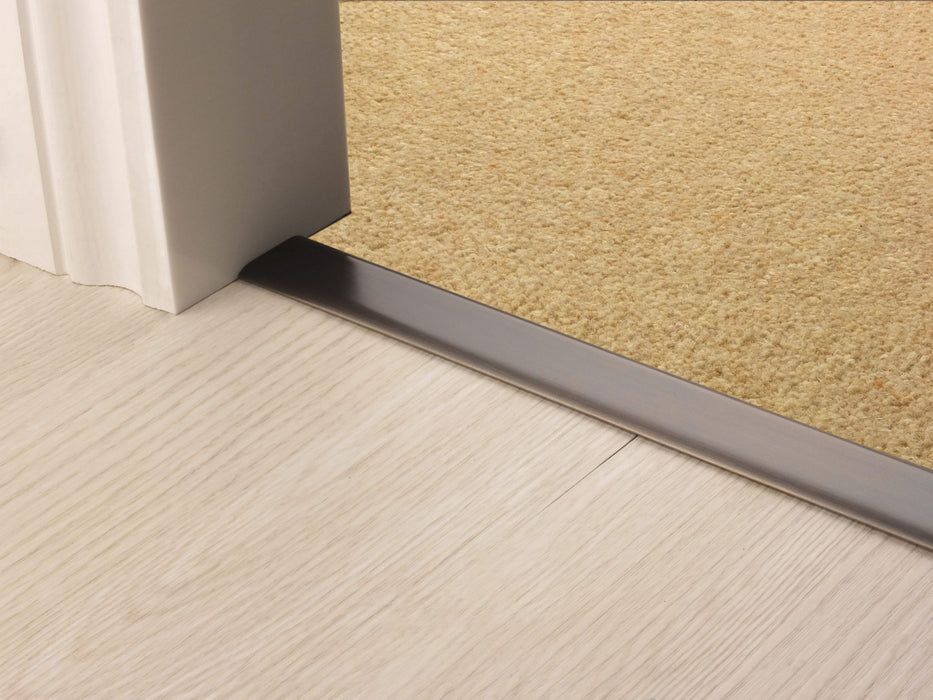

Premier Z9 Z bar in Antique Bronze for joining carpet to wood, tile or laminate. Made from solid brass with a deep bronze finish, ideal for traditional interiors with high-traffic floors.
Fastest Available Option*
Description
The Premier Z9 door threshold is designed to form a secure and tidy connection between carpet and hard floor surfaces, including ceramic tiles, wood, laminate, stone, and rubber. Commonly referred to as a ‘Z bar’ due to its distinctive shape, it holds the carpet firmly in place while allowing the hard flooring to sit neatly alongside.
Suitable for carpets approximately 9–12mm thick, the carpet is secured onto integrated pins, with thicker carpets requiring compression for a tighter fit.
For correct installation, both floor surfaces should be level so the threshold can sit flat. If the hard flooring is slightly higher than the carpet, 3mm MDF strips can be placed beneath the trim to raise it. This ensures the visible bar sits neatly over the edge of the hard floor while the pins align with the carpet to hold it under tension.
Once installed, the carpet can be ‘napped down’ using a carpeted wood block, improving the grip and slightly reducing the overall height.
Manufactured from solid brass with rounded edges and finished in antique bronze, this door threshold combines strength with a darker, more traditional finish.
Key Features
Designed to join carpet to hard flooring
Suitable for carpets approx. 9–12mm thick
Z bar profile for a secure and consistent transition
Compatible with tiles, wood, laminate, stone, and rubber flooring
Carpet is held in place using integrated pins
Can be ‘napped down’ for improved grip
MDF strips can be used to adjust height if needed
Made from solid brass for durability
Rounded edges for a smooth finish
Available in a range of unlacquered metal finishes
Sizing Specifications
Threshold width: 30mm (visible top bar)
Approximate thickness: 4mm
Suitable for carpets approx. 9–12mm thick
Available lengths: 900mm, 1000mm, 1800mm and 2700mm
Can be cut to size
Important: MDF strips can be used where slight height differences occur, but both floors should be level to achieve a proper finish. Your carpet may need to be compressed onto the pins depending on its thickness.
Flooring Compatibility
Suitable for:
Carpet to hard floor transitions
Ceramic tiles
Wood flooring
Laminate flooring
Stone flooring
Rubber flooring
Not suitable for:
Uneven floor levels without adjustment
How to Choose the Right Size Door Threshold
Measure the width of the doorway or the point where the carpet meets the hard floor. Select a slightly longer length so the threshold can be trimmed to achieve a precise fit.
The Z9 profile is designed for carpets within the 9–12mm range. Ensure both floor surfaces are level before installation. If the hard floor is slightly higher, use MDF strips to raise the threshold so it sits correctly.
If the carpet sits lower than the adjoining floor, Easyshims can be used to lift it and create a more gradual transition.
How to Install a Door Threshold Step-by-Step
Fitting a Premier Z9 door threshold can be completed with standard tools:
Measure and cut the threshold to the required length using a hacksaw.
Prepare the bar by removing one side of the base along the scored groove using pliers (turn anti-clockwise).
Position the threshold between the carpet and hard flooring.
Adjust height using MDF strips if necessary.
Secure the threshold using adhesive, nails, or screws (avoiding underfloor heating).
Press the carpet onto the pins so it is held firmly in place.
Use a carpeted wood block to ‘nap down’ the carpet for a tighter hold.

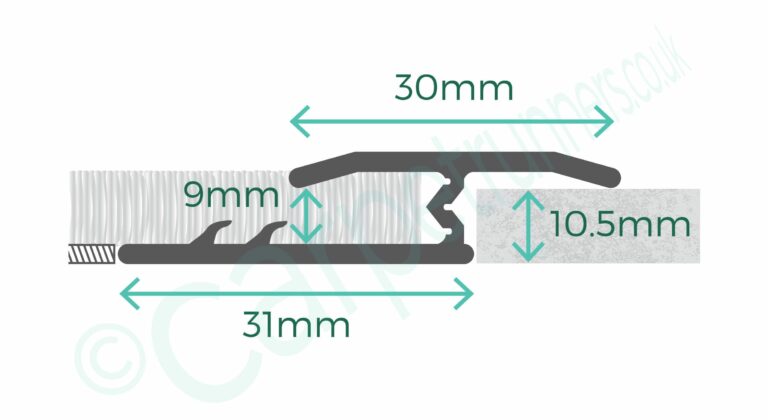

The visible bar or top is 30mm (just over 1") wide and approximately 4mm thick.
To prepare the Premier Z, score down the shown groove.Peel off the excess base strip with a pair of pliers.
How to Remove an Existing Door Threshold
Start by checking how the current threshold has been secured in place.
If it has been fixed with screws, carefully remove them using the appropriate screwdriver. If it has been nailed down, gently lift the trim using a claw hammer or pry bar.
Before fully removing the threshold, release the carpet edge from the pins, taking care not to damage the surrounding flooring.
Once removed, clear away any remaining fixings or debris before installing the new threshold.
Cleaning & Maintenance
Clean with a soft cloth and mild cleaning solution
Avoid abrasive products or harsh chemicals
This product is made from solid brass and hand-finished, so slight variations may occur. As it is unlacquered, the finish may naturally age over time depending on its environment.
Many of our door thresholds are available with next-day delivery. You’ll see this clearly marked at the top of the page and again at checkout.
We deliver throughout Great Britain for most items (including Northern Ireland).
We use DHL, DX and UK Mail for deliveries and ship direct from our manufacturers to your door to keep delivery times to a minimum.
The products we sell are high quality, and many are made-to-order and hand-finished. This means that delivery times vary for each product and will be displayed at the top of this page, with more information available on our delivery page.
Frequently Asked Questions
What is the purpose of a Z9 door threshold?
A Z9 door threshold is used to create a clean and secure transition between carpet and hard flooring.
What carpet thickness works best with this trim?
It is most suitable for carpets between approximately 9mm and 12mm thick.
Can this threshold be used with all hard floors?
Yes, it can be used with a variety of hard flooring types including wood, laminate, tiles, stone, and rubber.
How is the carpet fixed into the threshold?
The carpet is held in place by gripping pins and can be pressed down further for a tighter hold.
What should I do if the floor heights don’t match exactly?
If there is a slight height difference, MDF strips can be placed underneath the threshold to adjust the level.
Is this suitable for DIY fitting?
Yes, it can be installed using common tools and standard fixing methods.
Can the door bar be trimmed to size?
Yes, it can be cut to the required length using a fine-toothed hacksaw.
Will the antique bronze finish stay the same over time?
As the product is unlacquered, the finish may naturally develop over time depending on its surroundings.
