Easy Wedge or Chock
Fastest Available Option*
Fastest Available Option*
• Used to raise the profile for stretch fit installations.
• Raising the base allows for optimal teeth penetration.
• Easywedge’s used to raise the back edge of Singles, Square Edge’s etc.
Product
• For use when installing carpet using the stretch fit method.
• Both products are 3mm in thickness, raising the 1mm profile bases up to 4mm.
34
• The MDF Spacers or Easywedges are supplied with every order of Double Z, Slim Z, Ali Tramline Z, Square and
Single profiles.
• Easywedges and Easychocks are also available for purchase in buckets of 250 or 1000.

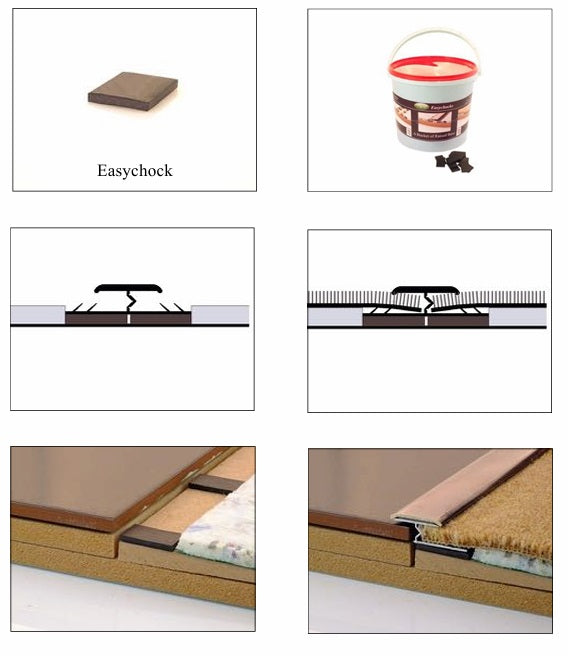

Installation
• Cut down the spacer and place it under nail holes to achieve a raised base of 4mm.
• By placing a wedge under each nail hole the profile will raise the back pins up to 4mm, whilst still keeping the leading
edge of the profile flush to the floor.
• Easy Wedges can also be used to accommodate various heights when using the Ali Tramline Z, by placing a wedge
under the anchoring pins the front edge will lower.
