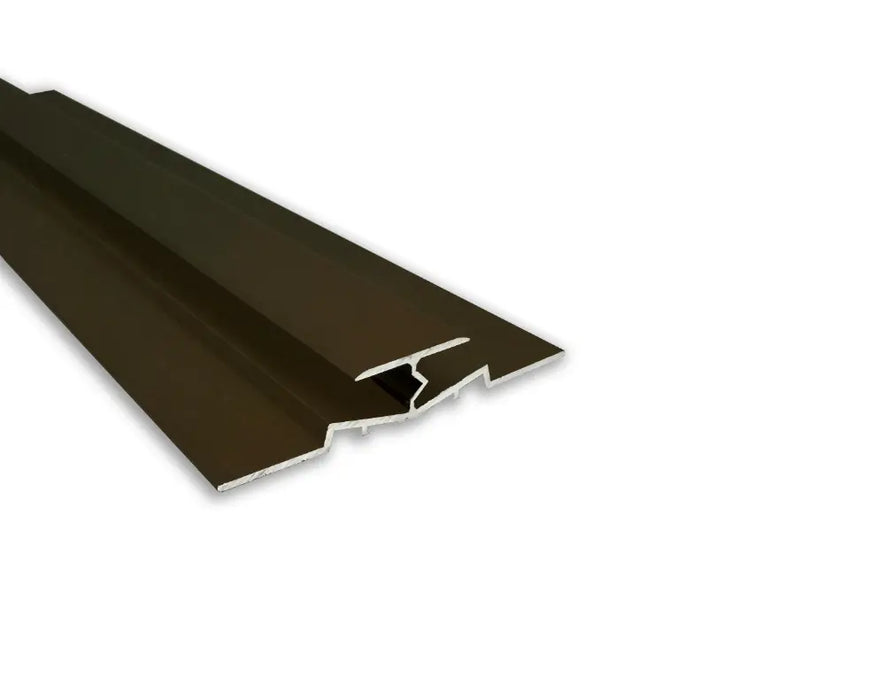

Bronze Z bar threshold for joining carpet to hard flooring. Brushed curved profile in a warm finish, suited to rustic, classic, or earthy-toned design schemes.
Fastest Available Option*
The Aluminium Double Z is a carpet threshold designed for joining carpet to carpet across doorways and room transitions. Also known as a Double Z9 or double naplock, it helps create a secure connection between adjoining carpets while maintaining a tidy appearance.
Suitable for quality carpets up to approximately 12mm thick, excluding underlay, the profile is designed for installations where both floor surfaces are level. Where slight differences in floor height occur, 3mm MDF strips can be positioned beneath the threshold. Easyshims can also be used where one carpet requires additional height to meet the pins.

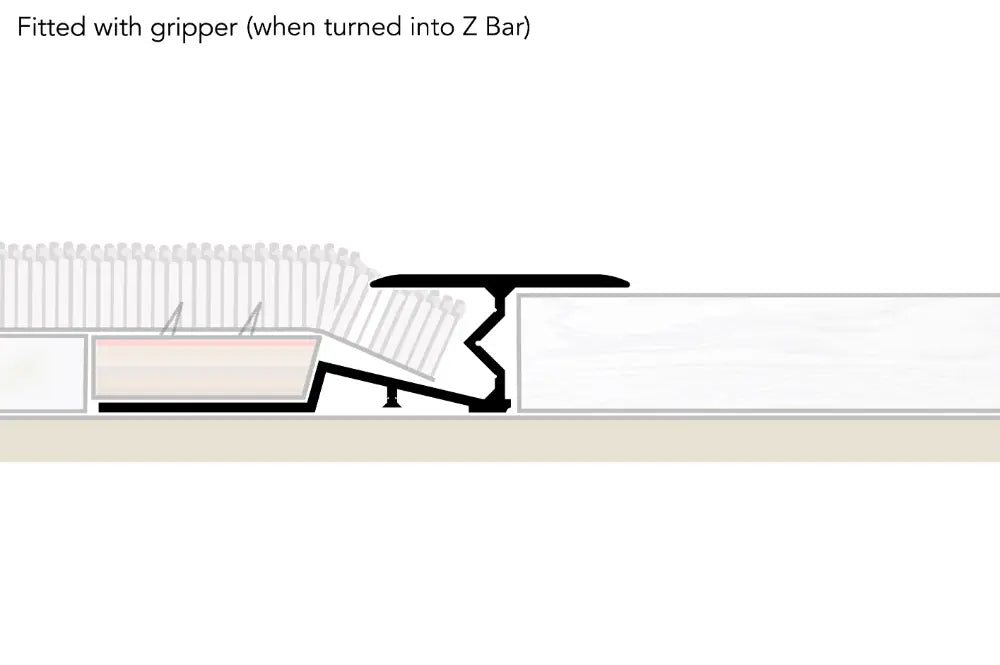

Manufactured from aluminium, the Double Z is available in a selection of nine finishes and is supplied in 900mm and 1800mm lengths. The profile can also be adapted for joining carpet to hard flooring by removing one base section.
Key Features
Designed to join carpet to carpet
Suitable for doorways and room transitions
Also known as a Double Z9 or double naplock
Suitable for carpets up to approximately 12mm thick (excluding underlay)
Intended for level floor installations
Manufactured from aluminium
Bronze finish
Available in nine finish options
Supplied in 900mm and 1800mm lengths
Suitable for cutting to size
Can be adapted for joining carpet to hard flooring
Part of the Aluminium Range
Sizing Specifications
Lengths Available:
900mm
1800mm

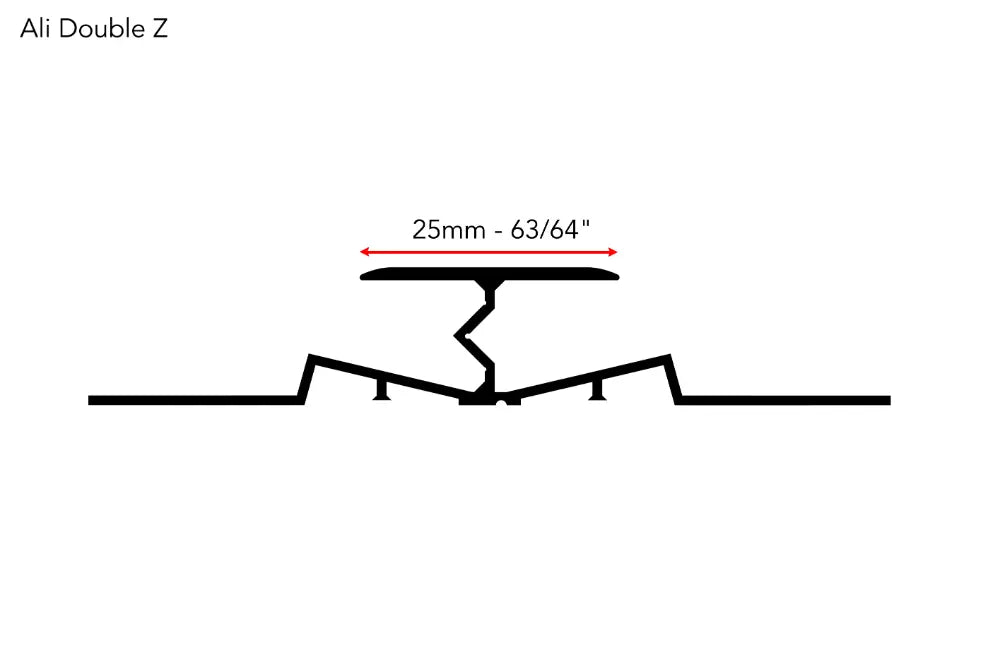

Threshold Width: 25mm
Visible Top Width: Approximately 30mm
Approximate Profile Thickness: 4mm
Suitable for carpets up to approximately 12mm thick (excluding underlay)
Flooring Compatibility
The Aluminium Double Z is suitable for:
Carpet to carpet joins
Level floor installations
The profile can also be adapted for:
Carpet to hard flooring joins
How to Install the Aluminium Double Z
Measure the doorway or flooring transition and cut the threshold to size using a hacksaw.
Position the threshold between the carpeted surfaces.
Secure the profile using a suitable adhesive, screws or nails.
Avoid fixing into areas where underfloor heating may be present.
Ensure the carpet underlay stops short of the threshold.
Stretch the carpets onto the pins.
If required, gently nap down the threshold using a carpeted wood block.
Napping down the profile can help provide a firmer grip on the carpet and may reduce the overall height by approximately 3mm.
For additional installation guidance, refer to the manufacturer's fitting video.
To prepare the Z bar, score down the shown groove.
Peel off the excess base strip with a pair of pliers.
Delivery Information
Available in 900mm and 1800mm lengths for convenient delivery and on-site cutting.
Free UK delivery is available on orders over £100.
Frequently Asked Questions
What is the Aluminium Double Z used for?
The Aluminium Double Z is designed to join two carpeted floor coverings across a doorway or room transition.
What carpet thickness can it accommodate?
It is designed for carpets up to approximately 12mm thick, excluding underlay.
Can it be used with hard flooring?
Yes. The profile can be adapted for carpet-to-hard-floor installations by removing one base section.
What if my floors are not perfectly level?
Minor height differences can be adjusted using 3mm MDF strips beneath the threshold. Easyshims can also be used to raise one carpet edge where necessary.
What lengths are available?
The Aluminium Double Z is available in 900mm and 1800mm lengths.
Can it be cut to size?
Yes. The profile can be cut to the required length using a hacksaw.
What finishes are available?
The Aluminium Double Z is available in:
Antique
Bronze
Black
Satin Chrome
Chrome
Copper
Brass
Satin Brass
Satin Nickel
Should underlay continue beneath the threshold?
No. The carpet underlay should stop short of the threshold during installation.
To prepare the Z bar, score down the shown groove.
