Ali Tramline Z - Chrome

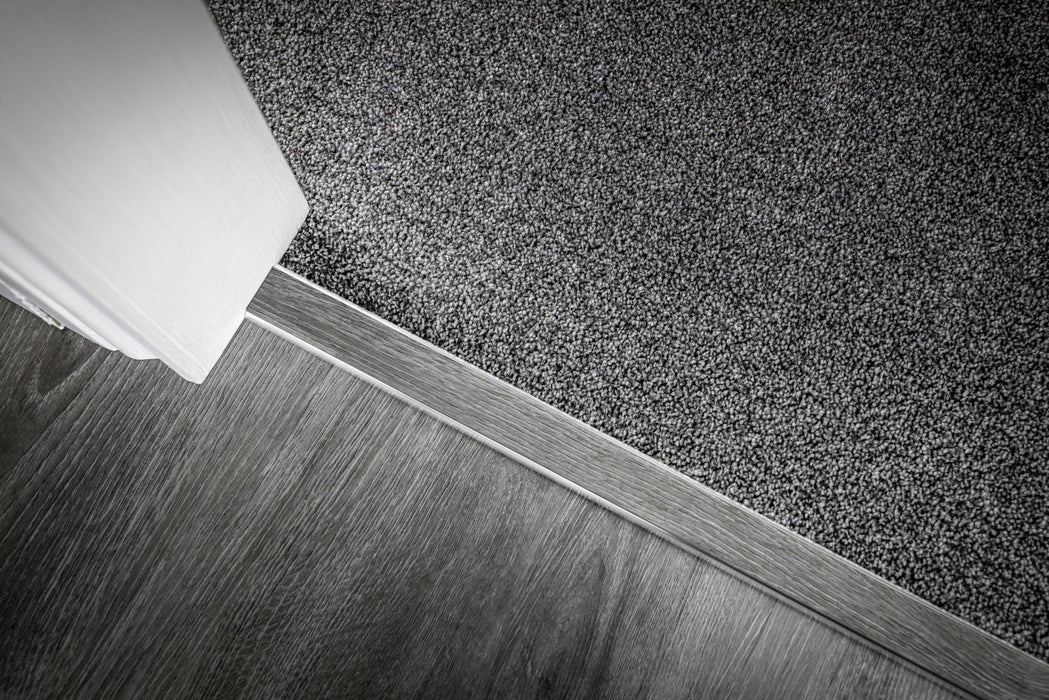

• The carpet threshold Ali Tramline Z achieves a professional-quality installation. It discreetly joins vinyl flooring to a carpet, either across a room or doorway. Likewise, use with any multi-layered type of flooring such as laminate.
• Choose the 1mm recess option if your vinyl flooring is a WPC or SPC type (wood or stone composite core) by peeling off the top pattern layer and inserting into the Ali Tramline Z. Please see the video below.
• Choose the 3mm recess option if your vinyl flooring is a luxury vinyl (LVT) up to 3mm thick. Simply cut a strip and insert into the Ali Tramline Z.
• Likewise choose the 3mm recess option if your LVT flooring is a Click fix method (floating) and typically 4-5mm thick or a thicker laminate flooring. Simply plane the thickness down to fit the 3mm recess.
• Each carpet threshold strip measures 30mm wide in total and is designed with a recessed channel to take a 24mm wide section of your vinyl flooring.
• Only use when the two floors are on the same level as each other. If your two floors are different heights, the Easyshim is a useful way to lift the carpet side.
• The Tramline Z is manufactured in high grade aluminium, in a choice of 4 metal finishes: black, chrome, polished brass and antique brass.
• Available 900mm and 1800mm long: suitable for cutting to length.
• For alternative door thresholds for joining to carpet, take a look at the Premier Single or the Premier Cover.

Size formats for the carpet threshold Ali Tramline Z door bars

• The channel (recess depth) is 3mm deep. It is suitable for inserting 2-3mm thick luxury vinyl (LVT)

Fitting Tips 3mm recess option

• Please see the step-by-step manufacturer's fitting video by clicking on the VIDEO tab above. This requires skilled fitting skills.
• Measure and cut a 24mm wide strip of your vinyl flooring.
• Nail the Ali Tramline Z to the floor using the supplied Easywedges under each nail hole to ensure an angled tight grip on the carpet pins. Do avoid nailing near any underfloor heating.
• Note that the carpet underlay stops short of the carpet threshold and only the carpet is stretched onto the pins.
• Peel off the protective cover of the self adhesive strip in the recessed channel and stick in place a 24mm wide strip of your flooring.

Fitting Tips for 1mm recess option

• To peel off the top layer of WPC or SPC vinyl flooring, please watch this video.
• For further information, please see the 3mm option above.
