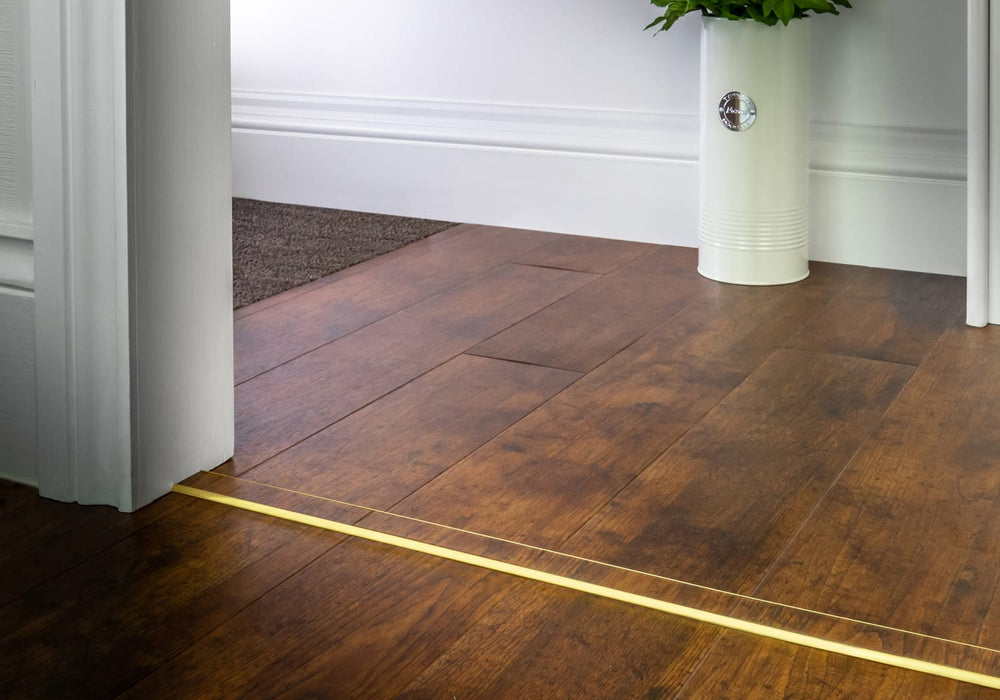

Ali Tramline Transition in Polished Brass. Smooth, flat transition bar for joining hard floors of the same level. A polished classic finish for doorways.
Fastest Available Option*
Ā
Description
The Ali Tramline Transition is a door threshold designed for joining vinyl flooring and other hard floor coverings where both surfaces are level. Suitable for use across doorways and room openings, it helps create a clean transition while protecting the cut edges of the flooring from wear.
The profile is compatible with a wide range of flooring types, including LVT, LVP, dry-back vinyl, click vinyl, floating vinyl, WPC and SPC flooring. It can also be used with other non-porous, level floating and non-floating floors.
Manufactured from high-grade aluminium, the Ali Tramline Transition is available in polished brass, antique brass, chrome and black finishes. It is supplied in 1800mm lengths and can be cut to suit individual installations.
This profile should only be used where both floor surfaces are level. Where there is a height difference between floor coverings, the Ali Tramline Reducer may be more suitable.
Key Features
Designed to join level hard floor surfaces
Suitable for use across doorways and room transitions
Compatible with a wide range of vinyl flooring types
Recessed channel accepts a matching flooring insert
Pre-attached heat and moisture-resistant tape secures the insert
Strong adhesive fixing strip on the underside
No screws required
Suitable for installations with underfloor heating
Manufactured from high-grade aluminium
Available in polished brass, antique brass, chrome and black finishes
Supplied in 1800mm lengths
Can be cut to size
Part of the Ali Range
Sizing Specifications
Threshold Width: 20mm and 24mm
Recess Depth Options:
1mm
3mm
5mm
Flooring Compatibility
The Ali Tramline Transition is compatible with:
LVT flooring
LVP flooring
Dry-back vinyl flooring
Click vinyl flooring
Floating vinyl flooring
WPC flooring
SPC flooring
Non-porous level floating floors
Non-floating floors
How to Install the Ali Tramline Transition
For the 1mm Recess Option
Carefully peel away the decorative surface layer from your WPC or SPC flooring.
Measure and cut the insert to the required size.
Fix the insert into the recessed channel using the pre-attached contact tape.
Position the threshold over the flooring join.
Secure the profile using the adhesive strip on the underside.
For the 3mm Recess Option
Measure and cut a section of LVT flooring to fit the recessed channel.
Fix the flooring insert into place using the pre-attached contact tape.
Position the threshold across the flooring join.
Secure the profile using the adhesive strip on the underside.
The 3mm and 5mm options allow up to 16mm expansion of the flooring - the red line shows the off-set adhesive on the underside.
Offset adhesive tape for sticking to the floor and sticking the inlay in place.
Delivery Information
Free UK delivery is available on orders over Ā£100.
Delivery times may vary depending on stock availability and order requirements. Please refer to our delivery information page for full details.
Frequently Asked Questions
What is the Ali Tramline Transition used for?
It is used to join hard flooring surfaces of the same height while covering and protecting the cut edges of the flooring.
What flooring types can it be used with?
The profile is suitable for LVT, LVP, dry-back vinyl, click vinyl, floating vinyl, WPC and SPC flooring, as well as other non-porous level floating and non-floating floors.
Can I use this profile on floors of different heights?
No. The Ali Tramline Transition should only be used where both floor surfaces are level. For uneven floor heights, the Ali Tramline Reducer may be more suitable.
Does it require screws for installation?
No. The profile uses a strong adhesive strip and does not require screws.
Is it suitable for use with underfloor heating?
Yes. As no screws are required, it is suitable for installations with underfloor heating.
Can the threshold be cut to size?
Yes. The 1800mm length can be trimmed to suit your installation.
What finishes are available?
The profile is available in polished brass, antique brass, chrome and black finishes.
Are matching trims available?
Yes. Other profiles within the Ali Range are available to help create a coordinated finish throughout your flooring installation.
