Ali Tramline End - Chrome

Ali Tramline End - Chrome

£17.79
£17.79 - £24.99
£17.79
£13.99
£13.99 - £20.99
£13.99

Discover the sleek, contemporary style of our Premier Lips trims, available in four sophisticated finishes—chrome, nickel, pewter, and black. These low-profile, stick-down trims are as versatile and stylish, offering a polished finishing touch for everything from small steps and wood or ceramic floor edges to French doors and more.

Fastest Available Option*

The self-adhesive scotia trim that matches your vinyl and laminate flooring

Cover the expansion gap the smart way

  • The Ali Tramline End is a floor profile that matches the design of your flooring and covers the expansion gap around the perimeter of a room or up against a sliding door when dry-back vinyl flooring or laminate flooring is installed. Otherwise known as "floating" (because the flooring naturally expands and contracts), dry-back floors slot together rather than being glued to the floor and this scotia trim neatly covers up the gap which appears when this type of floorcovering contracts.
  • Also known as a scotia trim by flooring professionals, the Ends are a smart and professional alternative to cheap, wood scotia trims and mouldings available from DIY outlets, which tend to easily scuff and mark.
  • The 3mm and 5mm recess options work with luxury vinyl and laminate flooring planed down to 3mm or 5mm thick. Meanwhile, the 1mm recess option is designed for WPC/SPC styles of vinyl (wood or stone composite core) where the top, patterned layer can be peeled off and inserted into the End.
  • Stick a strip of your flooring into the recess and stick to the skirting using the self-adhesive strip for a continuous and elegant edge to your flooring.
  • Made in robust aluminium and available in 4 metal frame options: polished brass, chrome, antique brass, black.
  • This scotia beading trim is available in 1800mm lengths, suitable for cutting to size or joining.
  • Suitable for finishing both curved edges and straight.
  • See the Tramline Transition, Tramline Reducer or Tramline Z for matching door thresholds in this range.

Size options

  • Order the 3mm deep recess (for 3mm thick) or 5mm (for 5mm thick) for similarly thick luxury vinyl (LVT) or laminate flooring.
  • Order the 1mm option for WPC/SPC (wood or stone composite core) vinyl flooring (watch the video to see how to peel off the top layer for this option).
  • See the diagrams (right) for dimensions

Fitting tips for the 3mm and 5mm recess option

  • Measure up carefully and choose the correct recess option for your specific flooring.
  • Ensure there is no dirt or dust.
  • Cut and stick a strip of the vinyl or laminate flooring into the recess using the inner self-adhesive strip.
  • Attach the beading strip to the skirting board using the outer self-adhesive strip.
  • For advice on fitting to a curved edge, please watch the manufacturer's video.

Fitting tips for the 1mm option

  • Measure up, score and peel-off a suitably sized strip of the top layer of your WPC or SPC vinyl flooring. This is a skilled job, so please see this manufacturer's video for a demonstration.
  • Stick into into the recess by peeling off the inner self-adhesive strip on the scotia trim.
  • Attach to the skirting board using the outer self-adhesive strip.

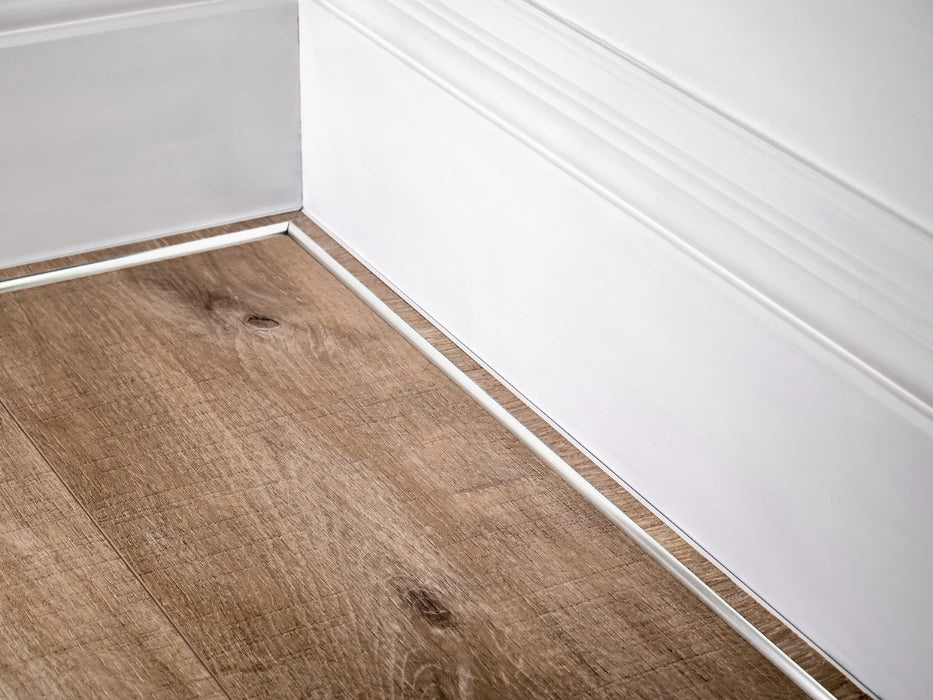

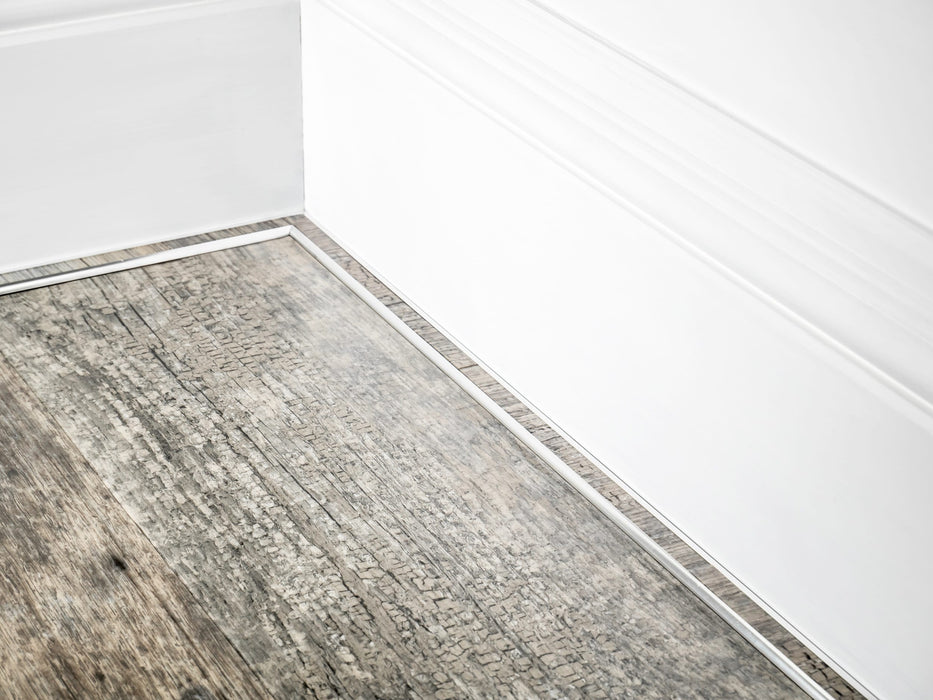

LVT scotia beading for LVT and laminate around edge of room
The Ali tramline End scotia trim creates a smart edge to LVT or laminate flooring installations
Scotia trim diagram showing how to fit
The red lines denote the inner and outer peel-off self-adhesive strips used for fixing

Ali Tramline End with 1mm slot for inlay
The 1mm recess takes the peeled-off surface layer of WPC and SPC vinyl flooring & covers an expansion gap of 10mm
Ali Tramline End beading dimension diagram for 3mm version
The 3mm recess version takes 3mm thickness vinyl or laminate & covers an expansion gap of up to 12mm
Ali Tramline End beading dimension diagram for 5mm version
The 5mm recess takes 5mm thick vinyl or laminate and covers an expansion gap of up to 12mm

Coordinating door bars and flooring trims to go with the Tramline End profile

We sell a choice of brands of door thresholds and trims. Each brand has its own selection of unique styles and finishes. We therefore recommend you choose from the same range if you wish them to complement each other. You can do a search by selecting RANGE in the filters.

Discover the sleek, contemporary style of our Premier Lips trims, available in four sophisticated finishesÑchrome, nickel, pewter, and black. These low-profile, stick-down trims are as versatile and stylish, offering a polished finishing touch for everything from small steps and wood or ceramic floor edges to French doors and more. Designed with both aesthetics and practicality in mind, each trim is fitted with a self-adhesive strip for quick, hassle-free installation. You can choose from three tape positions to suit your space and fitting preferenceÑjust refer to the illustration provided to find the right option for your home. Whether you're updating a modern interior or adding finishing details to a renovation project, this collection makes it easy to match your trim to your decor. All finishes in this range coordinate beautifully with our wider selection of door thresholds and stair rods, so you can achieve a seamless look throughout. Explore our full range of Premier Lips trims to see more colour options and profiles, and enjoy free UK delivery on orders over £75.

Finish Antique Brass, Black, Chrome, Polished Brass
Length 180cm
Size 10
Range Ali Range
Threshold Width 14 & 16mm
Recess Depth 1mm, 3mm, 5mm
